Product Details:
Payment & Shipping Terms:
|
| Another Name: | Buffing Machine | Function: | Buff The Surface Of The Tyre |
|---|---|---|---|
| Tyre Range: | 14’’ 15’’ 16’’ 20’’ 22.5’’ | Color: | Blue And Yellow |
| Feature: | Automatic | Buffing Time: | 3 MIN |
| Highlight: | tyre curing chamber,tire building machine |
||

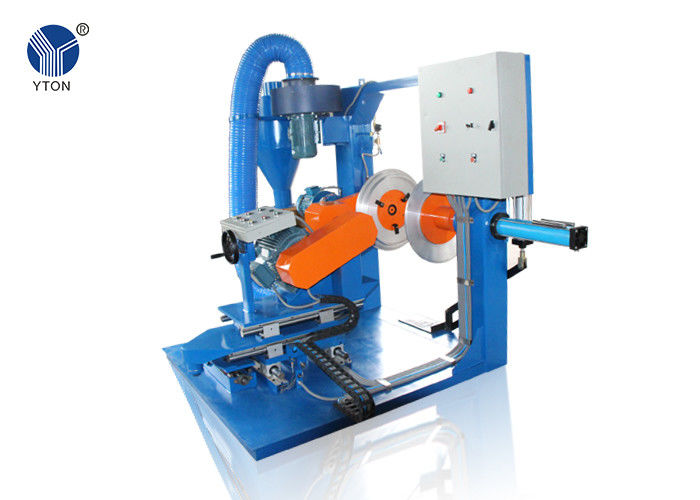

Full Sets Tire Retreading Machine Polishing Machine For Truck Tyre
First—Select tyres
Selected the suitable tyres from the waste tyres for retreading.
Manual work
Using tyre checking machine
Second—Buffing tyres
After selected, using tyre buffing machine grind the tyres, buffing to the distance from rubber line only 3-2mm, it can automatic control the distance.
Please note there is no stones and other sundry on the tyre.
Third—Repair tyre crown(the tyre tread after buffing)
Repair the tyre on the tyre repair stand, using repair tools clean the holes, rubdown the thread residue of TBR, processing the steel wire of wire bead.
Fourth—Tyre cavity repair
Using tyre checking machine, expend the tyre cavity, repair the holes, different sizes holes use different strengthening layers.
Fifth—Brush coating
After repairing, brush the glue (cushion rubber and 120#gasoline mixer), dry it in the air about 30mins.
Sixth—Extrude rubber strips
The tyres was sharped in the high speed way, after the above repairing, there will be a few mm sag, which need to fill in some rubber strip. If not, the empty parts will foam concrete pavement when the tyre in the high speed running.
Seventh—Stick the middle rubber
After extruded the rubber strips, stick the middle rubber, to ensure curing the buffing tread and rubber tread rubber.
Eighth—Stick tyre tread
When finished the above process, stick one layer tread rubber, it is the main material for tyre retreading. Select the best quality tread rubber, make a high quality renew tyre.
Ninth—Install the envelop
Using envelop spreader machine install the envelops. It will create a good physical condition for tyre curing, inflate the envelops to keep a balance pressure.
Tenth—Install inner tube, flap and rim
The rim can support the inner tube, when the chamber pressure and inner tube extrusion pressure.
Eleventh—Put tyres on the multi-function tyre frame
Put the packed tyres on the frame, then put them into curing chamber.
Twelfth—Curing
Mould curing machine with half-part mold, segment mold or cone mold
Thirteenth—Final inspection
After vulcanizing the tyres, using the high pressure inspection machine test the tyres strictly.
